Dobot M1 Robotic Arm + AGV for Research

Dobot M1 Robotic Arm + AGV for Research

Robotics & Engineering

A secondary experimental development platform for universities and research institutions:

The kit includes:

        • 1 DOBOT M1 Robotic Arm

        • 1 AC Power Cable

        • 1 DC Power Cable
        • 3 Power Adapter

        • 4Pin Connector

        • Emergency Stop Switch Kit

        • DB9 Serial Cable
        • Network Cable
        • 1 M3x10 Screws
        • 2 2.5mm Wrench
        • RobotLAB Start-up Instructions and Support


Price: $ 13,990

Out Of Stock


  • Main Features

    All-in-One Robotic Arm

  • Educational value

    Engineering, Robotics, Manufacturing, Design, Computer Science, Technology

  • What’s in the box?

    1 DOBOT M1 Robotic Arm, 1 AC Power Cable, 1 DC Power Cable, 3 Power Adapter, 4Pin Connector, Emergency Stop Switch Kit, DB9 Serial Cable, Network Cable, 1 M3x10 Screws, 2 2.5mm Wrench

  • Mobile / stationary


  • Student to robot ratio

    1 robotic arm per 1 to 5 students

  • Best for

    College, Industry

  • Grade Level


  • Curriculum

    Covering Robotics, Engineering, Science, Technology

  • Professional Development / Training

    No training required

Dobot M1+AGV- TOP

The DOBOT M1+AGV experimental development platform is an all-perceptive experimental platform that combines self-developed collaborative robots and intelligent mobile chassis. It can simulate various practical application scenarios, including target secondary positioning, logistics and material handling, path planning and automatic tracing. The platform can satisfy your conceptual understanding and experimental needs of industrial robots, AGV, MES and intelligent manufacturing by perfectly combining industry, university and research to achieve a seamless switch between the laboratory and the factory.



Compact design enables M1 to truly realize the integration of drive control, greatly improving the working efficiency between servo drive and control system. The repetitive positioning accuracy of M1 can reach 0.02mm, the maximum working range is 400mm, and the maximum load is 1.5kg, so as to ensure the best use effect of the lightweight industrial robotic arm. The simple and concise mechanical structure enables M1 to work efficiently and it’s perfect for various assembly line work. Standardized intelligent interface and open programming language make M1 highly extensible. With different accessories, M1 can realize diverse functions. With lightweight body, easy installation and various controls, M1 can help you quickly complete the work including production and packaging.

Dobot Precision Dobot Payload


Enterprises can save plenty of time and cost by setting up automatic product line with M1 for automatic packing. M1 can finish assembly line tasks instead of manual work, and can be perfectly qualified for tasks required high precision such as PCB plug-in, soldering and gluing. With the visual recognition suite, M1 can work like eyes to recognize and sort objects with different colors and shapes. M1 can be used for product quality check. With industrial cameras, M1 can recognize defective products quickly.

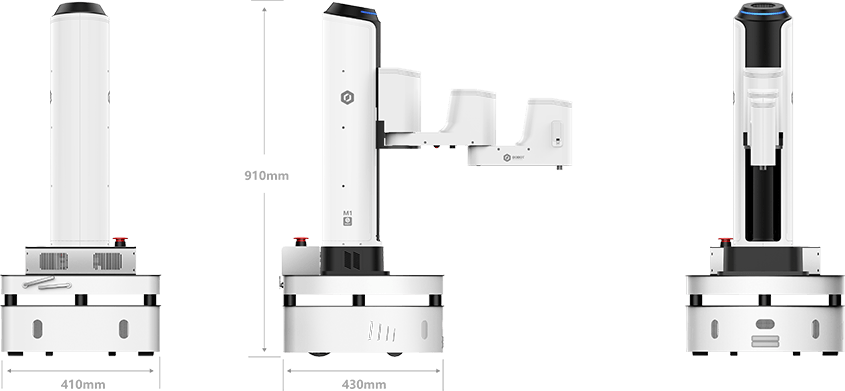

Dobot M1+AVG 1
Reach  400 mm
Playload 1.5 kg
Type Mechanical limitation, Software limitation
Rear Arm -90° -90°, -85° -85°
Maximum magnitude Forearm, -140° -140°, -135° -135°
Z-axis screw  0mm- 250mm,10mm- 235mm
End-effector rotation Unlimited, -360° -360°
Joint speed of forearm and Rear Arm 180°/s
Maximum speed Resultant speed of the Forearm and Rear Arm, 2ooo mm/s
Speed of Zaxis 1000 mm/s
Repeatability 0.02 mm
Power 100 -240v, 50/60 Hz
Communication interface Ethernet, RS-232C
I/O 22 digital outputs, 24 digital inputs, 2 DAC outputs, reserved, 6 ADC inputs
Software M1 Studio
System Linux
