Dobot Robot Vision Kit

Dobot Robot Vision Kit

Robotics & Engineering

The Robot Vision Kit provides a hardware platform for robot vision system development for the Dobot Magician Robotic Arm and the Dobot M1.

The kit includes:

  • 1 Fixed baseboard
  • 2 Robot calibration and color based sorting
  • 1 black & white calibration board
  • 1 Industrial camera, camera lens and bracket
  • 1 Camera lighting source
  • Power Adapter
  • Tool Package
  •

Price: $ 1,695


In Stock

I NEED A PRICE QUOTE

  • Main Features

    Make your Dobot Magician V3 robotic arm go further

  • Educational value

    Engineering, Robotics, Manufacturing, Design, Computer Science, Technology

  • What’s in the box?

    1 Dobot Robot Vision Kit, 1 power adapter, 1 tool package and a 1-year warranty

  • Mobile / stationary

    Mobile

  • Student to robot ratio

    1 robot vision kit per 1 to 5 students

  • Best for

    Middle School, High School, College, Summer Camp

  • Grade Level

    6-14

  • Curriculum

    Covering Robotics, Engineering, Science, Technology

  • Professional Development / Training

    No training required – available as an option

Dobot Robot Vision Kit

The Dobot Magician - Robot Vision Kit provides a basic set of hardware platform for robot vision system development. You can set up the vision kit with Dobot Magician and start to learn how to integrate vision system with a robot automation system. With the system, you can also do some researches on vision, artificial intelligence algorithm simulation, or develop vision based industrial applications.

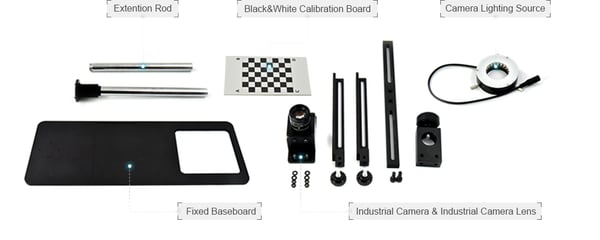

dobot-magician-robot-vision-kit-parts

Except for the examples of basic robot vision application software, the source code to learn robot-related software development is also provided. The demo project includes two parts: robot calibration and color based sorting. The Dobot will automatically reset to its original neutral position. When this button is pressed, the Dobot will rotate back to its preset home position. In this process, the Home point can be self-defined.

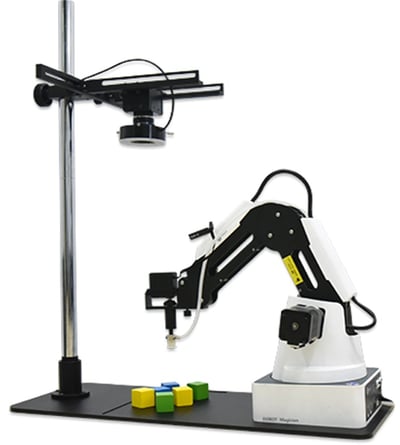

dobot-magician-robot-vision-kit

From point A to point B, each joint will run from an initial angle to its target angle, regardless of the trajectory. The motion time for all joints are the same which means all joints will start and finish at the same time.

SPECIFICATIONS

HD Color Industrial Camera

  • Effective Pixel: 3 million
  • Hue: Color
  • Frame Rate/Resolution: 12 @2048x1536
  • Data Interface: USB 2.0

White Auxiliary Light Source

  • Luminous Color: White
  • Illumination: 40000 lux
  • Brightness: Continuously Adjustable (Range: 0~100%), Color Temperature Constant

Camera Lens

  • Focus: 16mm
  • Aperture: F1.4-F16C
  • Focus Point: 0.3m-Inf

HD Color Industrial Camera

  • Product Number: JHSM300f
  • Sensor Size: 1/2'CMOS
  • Sensor Type: MT9T001
  • Effective Pixel: 3 million
  • Hue: Color
  • Pixel Size: 3.2x3.2um
  • Frame Rate / Resolution: 12 @2048x1536
  • Filter: 650nm
  • SNR: 42dB
  • Dynamic Range: 61dB
  • Shutter Type: Curtain exposure
  • Time of Exposure: 50.8um-3329ms
  • Exposure control: auto/manual
  • Size: 40x45x45mm
  • Data interface: USB2.0
  • Working Temperature: 0 ~70℃
