Dobot Robotic Arm MG400 Workstation

Dobot Robotic Arm MG400 Workstation

Robotics & Engineering

The Dobot MG400 workstation is a 4 axes robotic arm with accessories designed for higher education institutions and vocational schools to practice the automation processes for warehouse and assembly lines.

The kit includes:

- 1 Dobot MG400 Robotic Arm

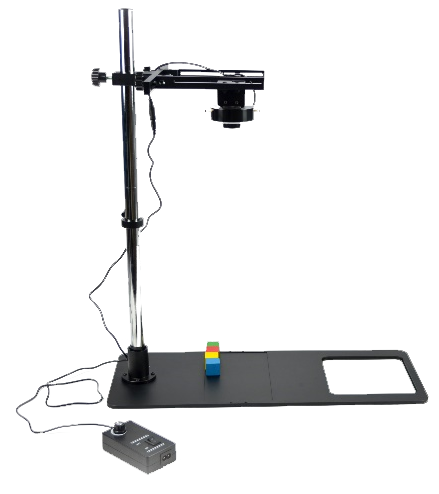

- Vision System
- Stock Bin
-Standard Inspection Board
-Button & Emergency stop
-MG400 Mini Vacuum Pump Box
-Wiring Terminal Block
-Mobile Phone Model Location Plate
-Guide Assembly Plate
-LED Status Monitor
-Tool Box *contents noted below

Price: $ 19,995

In Stock


  • Main Features

     Dobot MG400 Robotic Arm workstation

  • Educational value

    Engineering, Robotics, Manufacturing, Design, Computer Science, Technology

  • What’s in the box?

    Dobot MG400 Robotic Arm, Vision System, Conveyor, Stock Bin, Standard Inspection Board,MG400 Mini Vacuum Pump Box, Button & Emergency stop, Wiring Terminal Block,1 year Warranty and RobotLAB Support, Mobile Phone Model Location Plate,Guide Assembly Plate,LED Status Monitor and tool box.

  • Mobile / stationary


  • Student to robot ratio

    1 robotic arm per 1 to 5 students

  • Best for

    College, Industry

  • Grade Level


  • Curriculum

    Covering Robotics, Engineering, Science, Technology

  • Professional Development / Training

    No training required

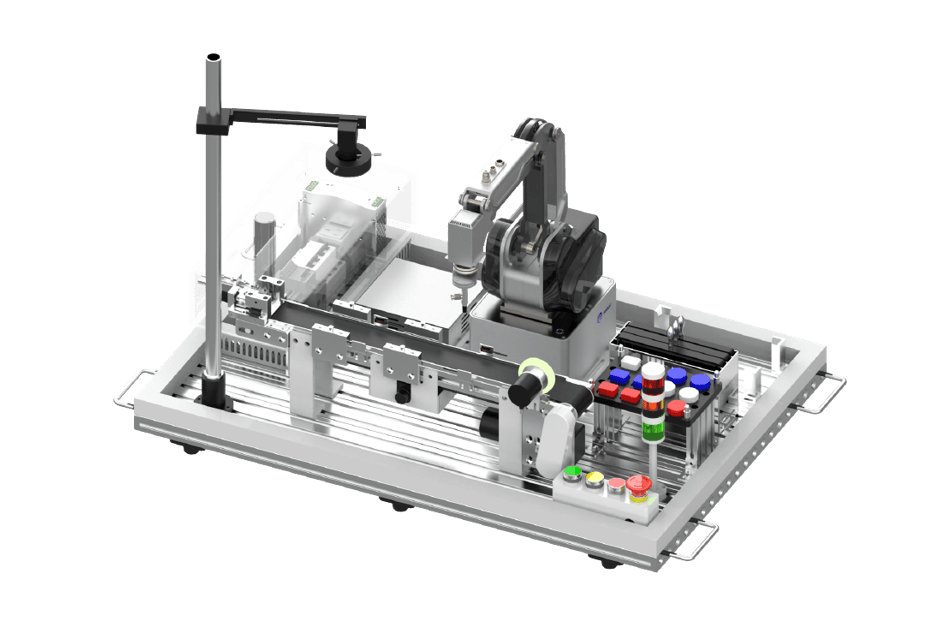

The MG400 Robotic Training System is an education solution designed for vocational studies and higher education institutions to help students understand the function and performance of a standard automated system and improve the training result.

• Portable desktop platform: 900×600mm (the system requires two carriers to load the platform in the trunk);
• All-round training of robot applications: robot programming and debugging, user coordinate system, coordinate tool system, palletizing, dynamic grasping, trajectory programming, robot object recognition, etc.

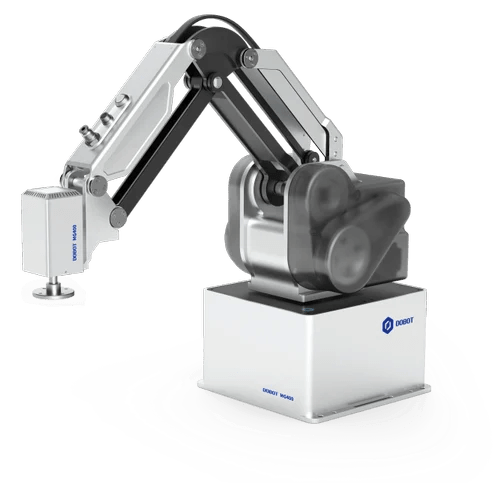

MG400 Collaborative Robot

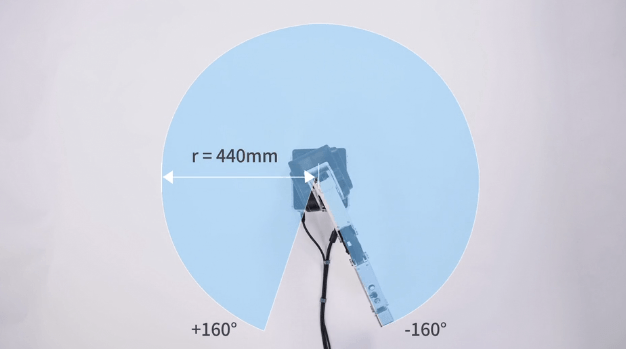

The MG400 is an ultra compact desktop grade robotic arm with footprint smaller than a piece of A4 size paper. It is safe for human collaboration, easy to use, and quick to deploy, making it perfect to automate small batch flexible productions. With 750 g maximum payload, 440 mm maximum reach, drag-to-teach and collision detection features, MG400 is a cost effective option for smart automation tasks.

Desktop Grade

Industrial Grade

Simplicity for Usability

Wide Array of
Programming Options

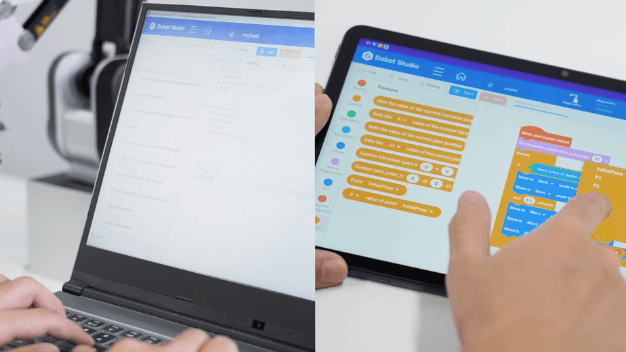

The MG400 has an all-in-one design that effortlessly fits into a 190 mm x 190 mm space. It is highly portable and is ideal for flexible production. The MG400 is equipped with a servo motor having a high-precision encoder, proprietary drive and controller, to achieve ±0.05 mm repeatability. Vibration suppression algorithm increases multi-joint motion stability time by 60% and reduces residual vibration by 70%. With drag-to-teach, the MG400 is designed to be easy to use. The MG400 lowers the barrier of entry into automation and is favored by numerous small and medium enterprises. In addition to drag-to-teach, the MG400 can also be programmed using Lua and graphical interface, suitable for developers of all levels.
