ELLIOT De- contamination Robot

Robots for Health Monitoring

Elliot is an advanced self-driving anti-epidemic Robot designed for indoor virus prevention. It is equipped with cutting-edge technology that allows body temperature measurement and screening, mask detection, disinfection and sterilization. It's currently used to fight against Coronavirus (COVID-19).

The solution includes:

  • 1 Elliot Robot
  • 1 Charger and Power Adapter
  • 1 Body Temperature Checking Kit
  • 2 Refillable Sprinkling Bottles (2.64 gal capacity)
  • 1 Transport Case
  • 1 Elliot Management Software + Mapping App
  • Configuration, Testing, Mapping
  • Startup Training
  • 1-year Warranty and RobotLAB Support


In Stock

I NEED A PRICE QUOTE

OR CLICK HERE TO SUBMIT YOUR PURCHASE ORDER
  • Main Features

    Fully-programmable mobile robot for for health monitoring and prevention

  • Dimensions

    4,1 ft tall

  • Sensors

    HD Camera, Infrared Camera, RGB-D Camera, Surround Camera, Facial Recognition Camera, Ultrasonic Sensor, High Precision Lidar, Pressure Sensor, Ultrasonic Sensor

  • What’s in the box?

    1 Elliot robot, 1 Charger with power adapter, 1 Body Temperature Checking Kit, 2 Sprinkling Cans, Software and 1 Transport Case

  • Mobile / stationary

    Mobile robot

  • Autonomy

    Fully-programmable

  • Training

    Training included

  • Warranty

    1-year warranty

Elliot-TOP-IMAGE

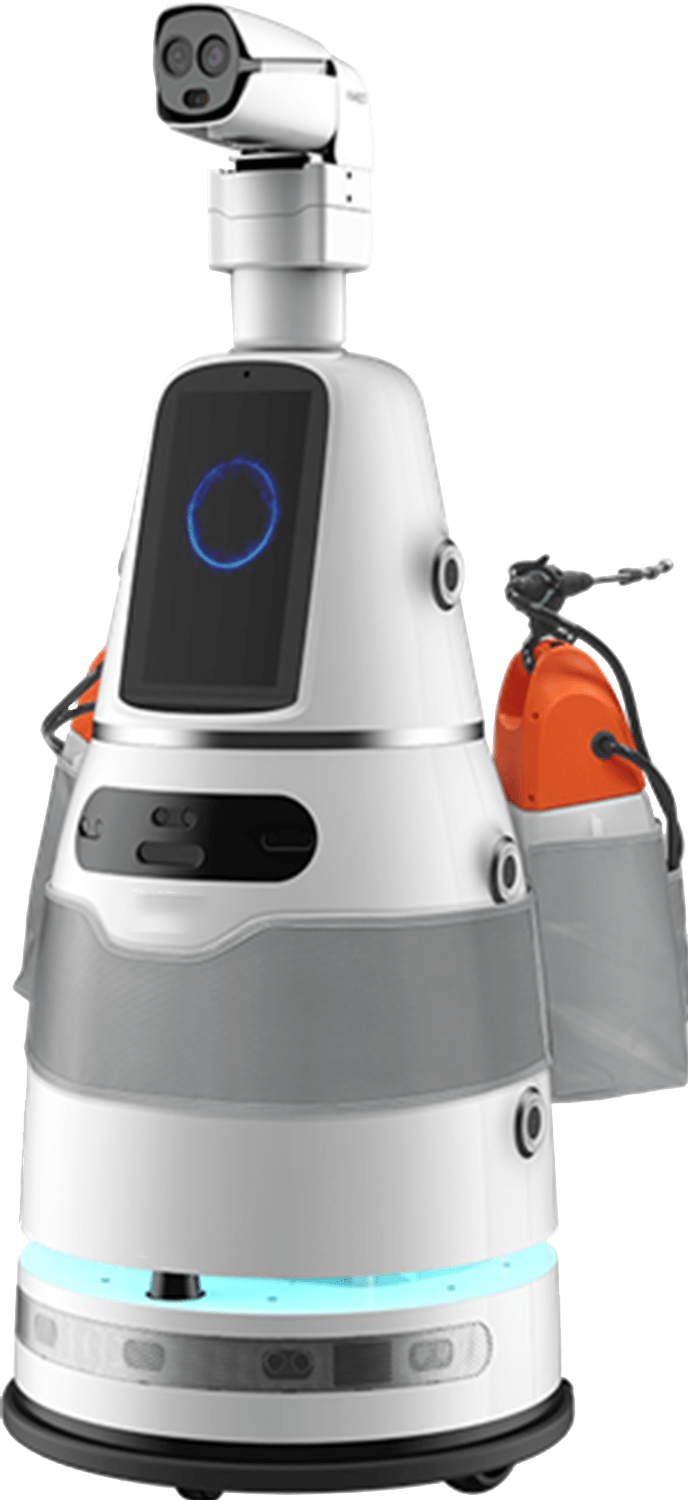

What is ELLIOT?

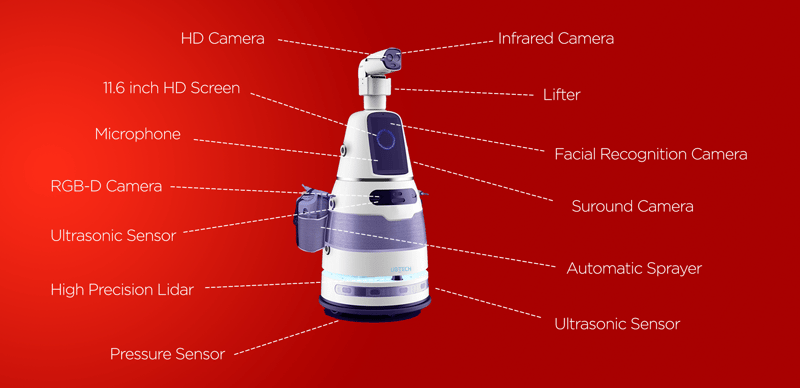

ELLIOT Robot is an indoor intelligent and autonomous anti-epidemic robot designed and built for virus prevention. It is equipped with rich functional modules and multiple sensors that allows it to navigate autonomously, interact with people, measure body temperature, detect improperly-protected individuals and automatically sprays disinfectant in indoor space. Already used by many organizations, ELLIOT is one of the best robotic solution to fight against the current threat of COVID-19.

Aimbot Specs-1-1

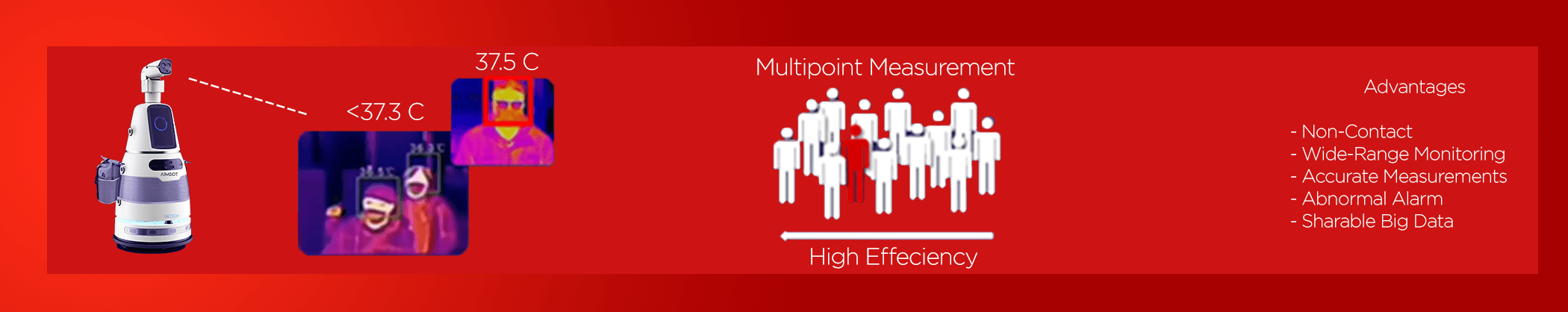

Body Temperature Measurement and Screening

ELLIOT is equipped with an infrared thermal imaging camera that can carry out long distance and wide-ranging body temperature measurement in indoor public space that see large numbers of people, such as schools, hospitals, airports, train stations and office buildings.

Long Distance Visibility Temperature Registering

Long distance body temperature monitoring reduces risks of cross infection

Wide range of visibility improves passing speed

Non-contact temperature measurement prevents causing discomfort

Autonomous registering and alerting of temperature abnormality ensures maximum security

ELLIOT is equipped with an infrared thermal imaging camera that can carry out multi-point parallel measurement in an indoor environment with large flow of people, detect body temperature of human in a large range, screen out people whose body temperature is higher than 37.3 ℃ and give early warning in time, also lock the individual for tracking and monitoring.

ELLIOT is equipped with an advanced infrared camera with temperature measurement error that is less than 0.3℃.  This technology allows a much higher efficiency and a systematic approach.

Temperature measurement solution

Infrared thermography temperature measurement

Manual body temperature equipment

Actual scene

Actual Scene 1 Actual Scene 2

Measuring distance

8.2-11.5ft (2.5-3.5m)

0.4-1.2in (1-3cm)

Number/each time

15 individuals

1 individual

Measuring efficiency

200/min

10/min



Aimbot Temperature

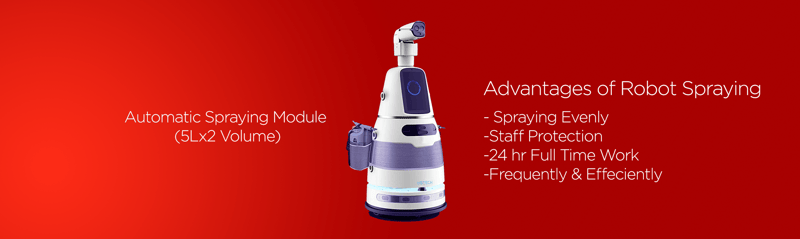

Autonomous Navigation and Automatic Disinfection

ELLIOT has a powerful integrated Simultaneous Localization And Mapping (SLAM) system that enables autonomous driving. After a navigation route has been preset, ELLIOT  is able to navigate and spray disinfectant in the defined area with the two 2.64-gallon (10-liter) capacity refillable bottles.

Aimbot Spraying Module1

Automatic Docking and Recharging

ELLIOT's battery provides 6-8 hours of active use. When its battery is low, ELLIOT will automatically return to its self-charging dock.



Mask Detection and Notification

ELLIOT can detect individuals who are not wearing face masks in an indoor environment with large traffic. When someone is identified, ELLIOT can remind the person to wear his mask thought a customized voice message and send a real-time notification to the staff.

Aimbot Mask Protection1

Tailored Customer Service

The RobotLAB team is committed to provide you the best service for a smooth and easy deployment. Our solution includes the programming of the robot, training as well as on-going support.

ubtech-robot-covid-19-no-logo2

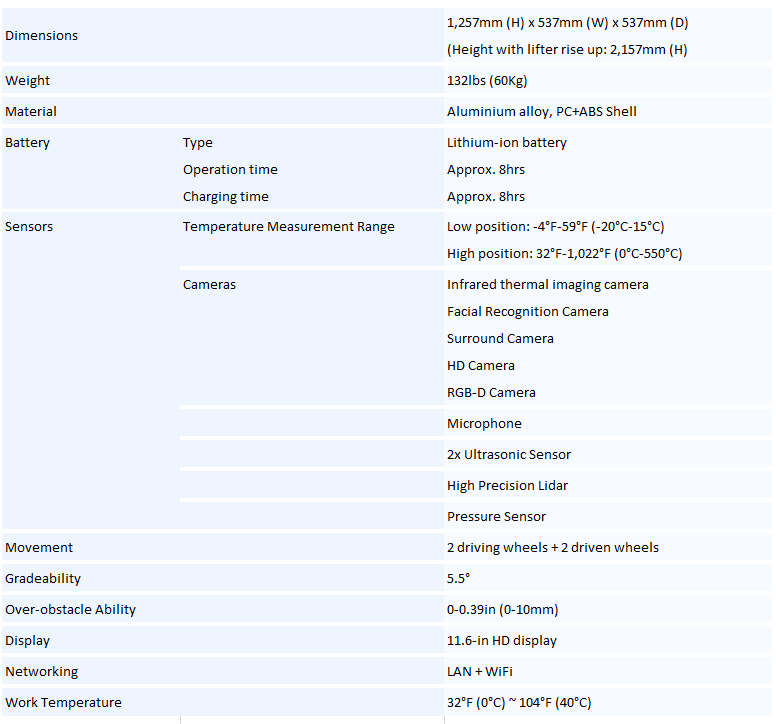

Specifications of Elliot Robot

Aimbot Specs



Available Documents
