Cruzr Health Monitoring Robot

Robots for Health Monitoring

Cruzr is an advanced self-driving humanoid robot capable of complex actions and interactions with humans. This version of Cruzr allows body temperature measurement and screening, mask detection and remote video calls. It's currently used to fight against Coronavirus (COVID-19).

The solution includes:

  • 1 Cruzr Robot
  • 1 Charger and Power Adapter
  • 1 Body Temperature Checking Kit
  • 1 Cruzr Management Software + Mapping App
  • Configuration, Testing, Mapping
  • Startup Training
  • 1-year Warranty and RobotLAB Support


In Stock

I NEED A PRICE QUOTE

OR CLICK HERE TO SUBMIT YOUR PURCHASE ORDER
  • Main Features

    Fully-programmable mobile robot for for health monitoring and prevention

  • Dimensions

    3,93 ft tall

  • Sensors

    HD Camera, Infrared Imaging Temperature Measurement Camera, Ultrasonic Sensor, High Precision Lidar, Pressure Sensor, IR Sensor, Geomagnetic Sensor, Sonar Sensor

  • What’s in the box?

    1 Cruzr robot, 1 Charger with power adapter, 1 Body Temperature Checking Kit and software

  • Mobile / stationary

    Mobile robot

  • Autonomy

    Fully-programmable

  • Training

    Training included

  • Warranty

    1-year warranty

sensor-robot





What is Cruzr?

CRUZR Robot is an indoor intelligent and autonomous robot. With 17 degrees of freedom, Cruzr moves like a human. Cruzr has flexible arms and can provide users with rich body language. With its four-layer protection system, Cruzr is capable of shaking hands, greeting visitors, moving around, dancing and hugging. His 3 abrasion resistant and quiet omni-directional wheels enable him to move around smoothly through 360°, at a maximum speed of 1 m/s.

Cruzr integrates various interaction modes. The multi-modal synergies and coordination make the interaction more fluid and more human-like, which greatly enhances the user experience:

    • Voice: Thanks to its two-channel stereo speakers, Cruzr is able to speak in English and Chinese
    • Vision: Cruzr is equipped with a 13MP camera enabling him to effectively understand his environment. The images are processed by a software capable of identifying faces within milliseconds. Cruzr is an open source platform which also lets you implement 3rd party resources for emotion detection, gender, age, ethnicity recognition, etc.
    • Text: The 11.6-inch touch screen tablet embedded on Cruzr can display any type of information (text, pictures, videos...) making the interaction even smoother
    • Action: You can program Cruzr to act differently and to do things based on a specific event or a series of event.

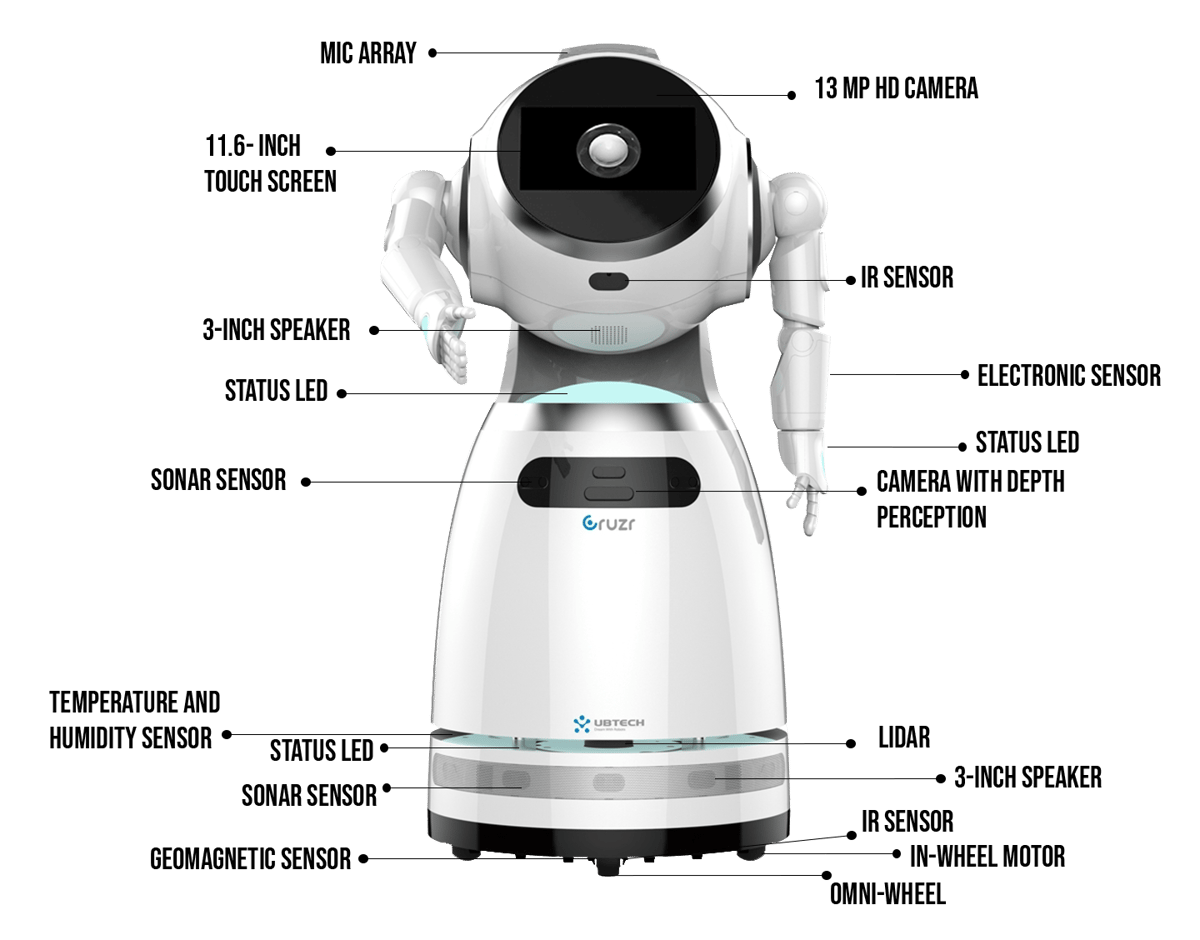

Cruzr RobotLAB Specs



Body Temperature Measurement and Screening

CRUZR is equipped with an infrared thermal imaging camera that can carry out long distance and wide-ranging body temperature measurement in indoor public space that see large numbers of people, such as schools, hospitals, airports, train stations and office buildings.

Long Distance Visibility Temperature Registering

Long distance body temperature monitoring reduces risks of cross infection

Wide range of visibility improves passing speed

Non-contact temperature measurement prevents causing discomfort

Autonomous registering and alerting of temperature abnormality ensures maximum security


The infrared thermal imaging camera that can carry out multi-point parallel measurement in an indoor environment with large flow of people, detect body temperature of human in a large range, screen out people whose body temperature is higher than 37.3 ℃ and give early warning in time, also lock the individual for tracking and monitoring.

Camera-1

CRUZR is equipped with an advanced infrared camera with temperature measurement error that is less than 0.3℃.  This technology allows a much higher efficiency and a systematic approach.

Temperature measurement solution

Infrared thermography temperature measurement

Manual body temperature equipment

Actual scene

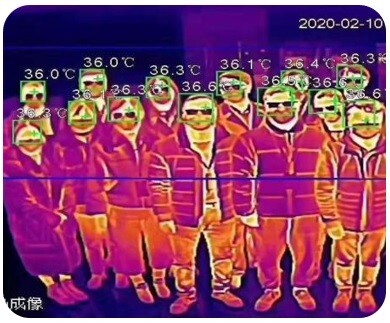

Actual Scene 1 Actual Scene 2

Measuring distance

3.2-5ft (1-1.5m)

0.4-1.2in (1-3cm)

Number/each time

10 individuals

1 individual

Measuring efficiency

60/min

10/min



Autonomous Navigation

CRUZR includes the SLAM (simultaneous location and mapping) proprietary software from UBTECH that uses real-time positioning and mapping to avoid obstacles. From the software, you can easily preset a navigation, a bifurcation or set specific points of interest. CRUZR is able to function in complex environments thanks to his depth-perception camera, Lidar and IR sensors that enable him to navigate autonomously.





Automatic Docking and Recharging

CRUZR's battery provides 5-8 hours of active use (24 hr standby). When its battery is low, CRUZR will automatically return to its self-charging dock.





Mask Detection and Notification

CRUZR can detect individuals who are not wearing face masks in an indoor environment with large traffic. When someone is identified, CRUZR can remind the person to wear his mask thought a customized voice message and send a real-time notification to the staff.

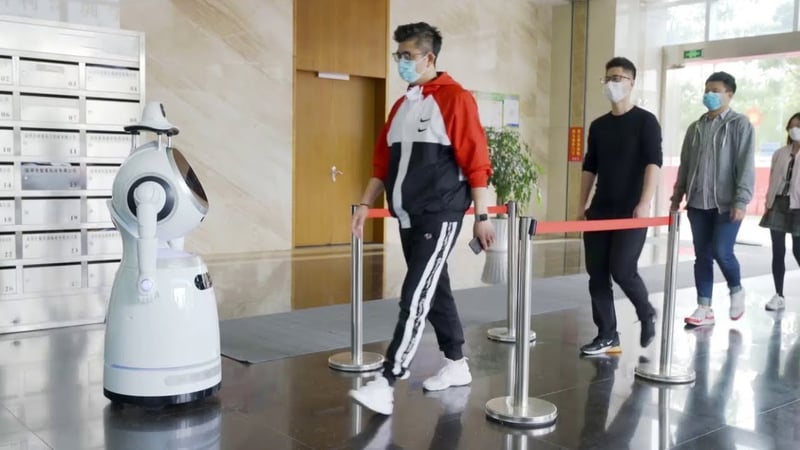

Cruzr Covid-19





Telepresence Capabilities

CRUZR can also be used as a concierge, giving incoming patients a two-way video connection to a remote doctor or nurse who might conduct their initial intake assessment.



Tailored Customer Service

The RobotLAB team is committed to provide you the best service for a smooth and easy deployment. Our solution includes the programming of the robot, training as well as on-going support.

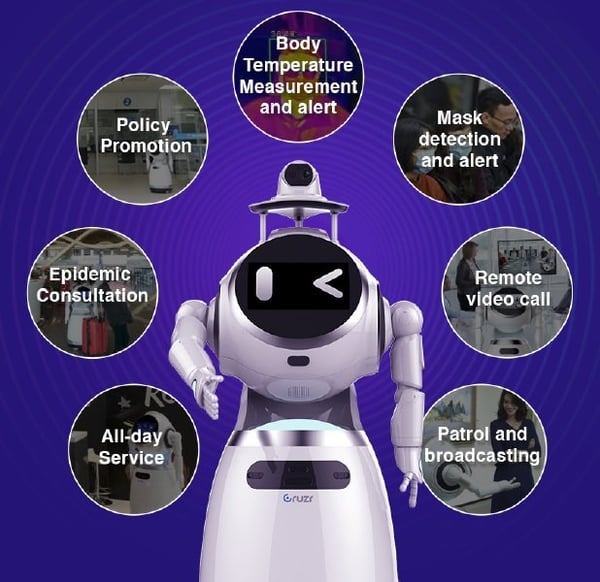

Cruzr Covid Features

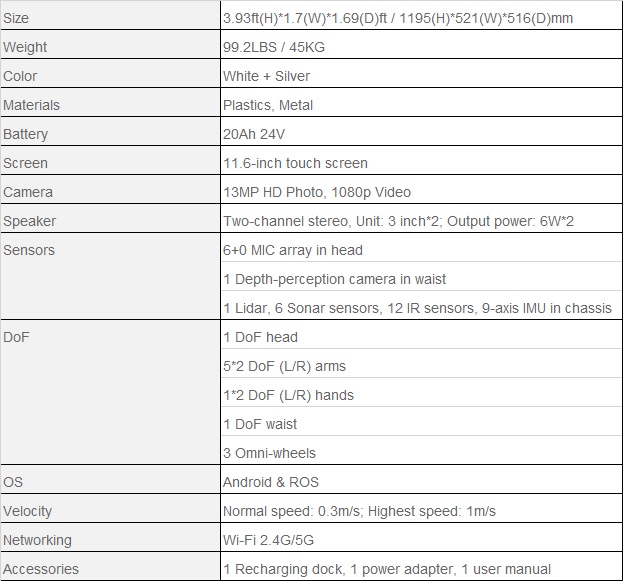

Specifications of Cruzr Robot



Cruzr_Robot_Specs
