Overview

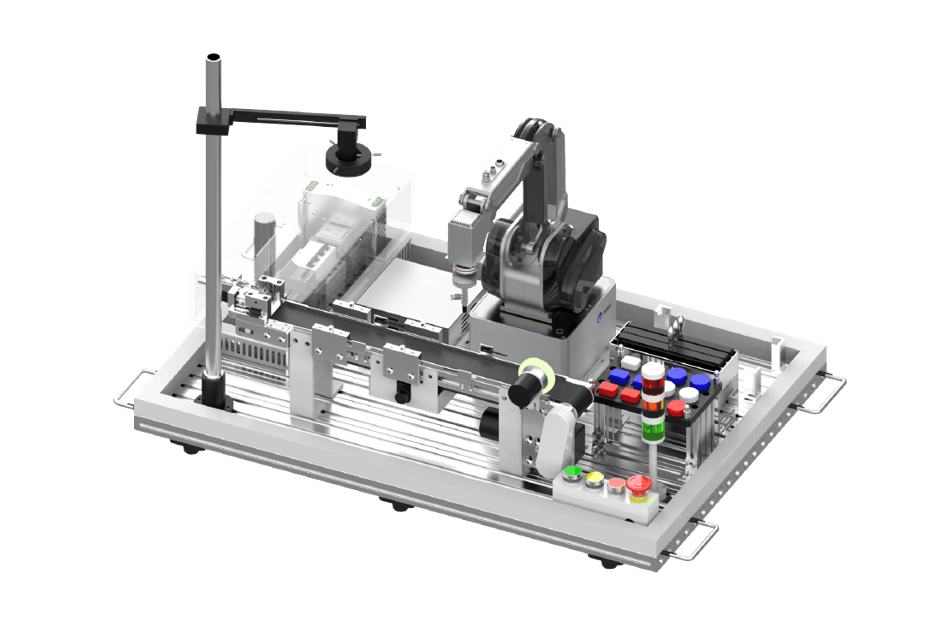

What is the Dobot Robotic Arm MG400 Workstation?
The Dobot MG400 Workstation packages a genuine industrial robot arm into a self-contained training cell built for higher education, research, and vocational programs. At its core is the Dobot MG400, a 4-axis desktop-grade cobot with a 440 mm working radius, up to 750 g payload, and ±0.05 mm repeatability, mounted on a workstation that adds a machine-vision system, a conveyor belt, function plates, a vacuum source, and operator controls. The result is a complete, hands-on platform for teaching the same loading/unloading, inspection, and pick-and-place tasks students will encounter on a real production line.
RobotLAB sells the MG400 Workstation as a turnkey teaching solution: the package ships with the MG400 arm, vision system and conveyor, stock bin and inspection board, a mini vacuum pump box, emergency-stop and button controls, a wiring terminal block, mobile-phone-location and guide-assembly plates, an LED status monitor, and a tool box. Students program it in Python, C++, Blockly, or ROS and run real automation projects such as object detection, grabbing, palletizing, and visual positioning. RobotLAB recommends roughly a 1:5 student-to-robot ratio for lab use.
As a reseller and integrator, RobotLAB delivers this product with white-glove deployment, professional development and training, and a one-year warranty backed by RobotLAB support. It is available to buy outright at $19,995 or through RobotLAB's Robot-as-a-Service (RaaS) program starting at $419/month, which bundles hardware, installation, training, software updates, and ongoing technical support so institutions can stand up an Industry 4.0 lab without a large capital outlay.
Specifications
Key specs
| Manufacturer | Dobot |
| Robot model | MG400 (desktop-grade 4-axis robotic arm) |
| Configuration | Industrial training workstation (arm + vision + conveyor) |
| Degrees of freedom | 4 axes |
| Payload | 500 g rated (750 g max) |

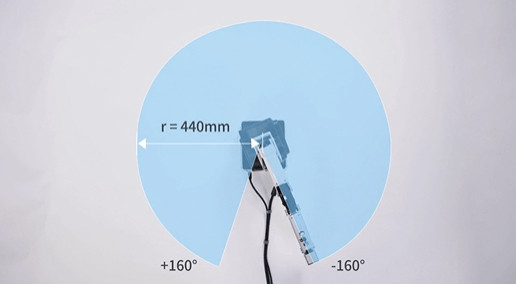

| Working radius / reach | 440 mm |
| Repeatability | ±0.05 mm |
| Range of motion | J1 ±160°, J2 -25° to 85°, J3 -25° to 105°, J4 ±360° |
| Max joint speed | 300°/s (all joints) |
| Arm weight | 8 kg |
| Arm base footprint | 190 mm x 190 mm |
| Power input | 100–240 V AC, 50/60 Hz (48 V DC rated) |
| Communication interface | TCP/IP, Modbus TCP |
| Programming languages | Python, C++, Blockly, ROS (DobotStudio Pro / SCStudio) |
| Included components | MG400 arm, vision system, conveyor, stock bin, inspection board, mini vacuum pump box, E-stop & button controls, wiring terminal block, function plates, LED status monitor, tool box |
| Vacuum source | Mini vacuum pump (suction-cup tasks) |
| Sensors | Vision, proximity, and force sensing (per RobotLAB) |
| Operating environment | 0°C to 40°C |
| IP rating (arm) | IP20 |
| Recommended student-to-robot ratio | 1:5 |
| Warranty / support | 1-year warranty with RobotLAB support |
| Deployment options | Purchase or Robot-as-a-Service (from $419/mo) |
| Purchase Price | $19,995 |
How it works
Dobot Robotic Arm MG400 Workstation in detail
Higher-Ed & Research Automation Labs
Universities and community colleges use the MG400 Workstation to teach robotics, mechatronics, and computer science with an industrial-grade arm rather than a toy. Students program pick-and-place, vision-guided positioning, and conveyor-synchronized tasks in Python, C++, or ROS, mirroring the workflows used in real manufacturing cells.
Vocational & Workforce Training
Technical schools and workforce-development programs use the integrated vision system, conveyor, and PLC-style controls to train students on assembly-line automation: object detection, grabbing, handling, palletizing, and quality inspection. The modular function plates let instructors stage progressively harder projects on the same hardware.
K-12 STEM and Advanced Coding Programs
Well-resourced K-12 and magnet STEM programs deploy the workstation to give students hands-on exposure to industrial robotics and coding. Blockly-based graphical programming lets newcomers start quickly, while Python and ROS give advanced students a path toward college- and career-level skills.
Industry 4.0 Demonstration & Prototyping
Research groups and innovation labs use the compact cell to prototype small-batch automation concepts, test machine-vision pipelines, and demonstrate flexible production. The 190 mm x 190 mm arm footprint fits on a benchtop while still delivering ±0.05 mm repeatability for credible proof-of-concept work.
Compare
How the Dobot Robotic Arm MG400 Workstation compares
Gallery

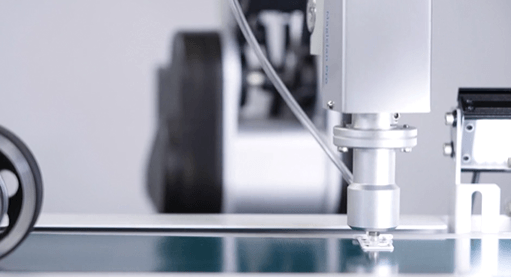

See the Dobot Robotic Arm MG400 Workstation
See it in action
Dobot Robotic Arm MG400 Workstation in the field
What's included
In the box
- Dobot MG400 Robotic Arm
- Vision System
- Conveyor
- Stock Bin
- Standard Inspection Board
- MG400 Mini Vacuum Pump Box
- Button & Emergency stop
- Wiring Terminal Block
- 1 year Warranty and RobotLAB Support
- Mobile Phone Model Location Plate
- Guide Assembly Plate
- LED Status Monitor and tool box
Talk to a specialist
Get pricing & a free demo of the Dobot Robotic Arm MG400 Workstation.
Same-day response. We handle delivery, on-site setup, staff training, and ongoing service nationwide.
Questions & answers
About the Dobot Robotic Arm MG400 Workstation.
-
What exactly is the Dobot MG400 Workstation?
It is a complete industrial-grade robotics training cell built around the Dobot MG400, a 4-axis desktop cobot arm. Beyond the arm, the workstation adds a machine-vision system, a conveyor belt, a stock bin and inspection board, a mini vacuum pump, function plates, operator controls (E-stop and buttons), an LED status monitor, and a tool box. It lets students run real automation projects rather than just move a bare arm. For a full configuration walkthrough, call 1-87-RobotLAB.
-
Who is this workstation designed for?
RobotLAB positions it for higher education and research institutions, vocational and workforce-training programs, and advanced K-12 STEM and coding programs. It suits any lab that wants students working with an industrial-grade arm, machine vision, and conveyor-line automation. RobotLAB suggests roughly a 1:5 student-to-robot ratio for classroom use.
-
What can students program it with?
The platform supports Python, C++, Blockly (graphical block programming), and ROS, plus Dobot's own DobotStudio Pro / SCStudio environment with drag-to-teach. That range lets beginners start with Blockly and advance to Python and ROS for college- and career-level work. RobotLAB's team can advise on curriculum fit at 1-87-RobotLAB.
-
What are the arm's core specs?
The MG400 is a 4-axis arm with a 440 mm working radius, 500 g rated payload (750 g maximum), ±0.05 mm repeatability, and a compact 190 mm x 190 mm base footprint. It runs on standard 100–240 V AC power and communicates over TCP/IP and Modbus TCP. Spec sheets are available from RobotLAB on request.
-
Can I lease it instead of buying outright?
Yes. The workstation is $19,995 to purchase, or you can use RobotLAB's Robot-as-a-Service (RaaS) program starting at $419/month, which bundles the hardware, professional installation, staff training, software updates, and ongoing technical support. Call 1-87-RobotLAB to compare purchase versus RaaS for your budget cycle.
-
Does it come with training and support?
Yes. As a reseller and integrator, RobotLAB includes white-glove deployment, professional development and training, and a one-year warranty backed by RobotLAB support. Additional onboarding and curriculum support can be arranged. Reach the RobotLAB team at 1-87-RobotLAB.
-
How is this different from a bare MG400 arm or a Magician classroom pack?
A bare MG400 is just the arm; this product is a full training cell with vision, a conveyor, and accessories so students learn complete line-automation workflows. Compared with Dobot Magician classroom packs (multiple smaller desktop arms for introductory STEM), the MG400 Workstation centers on one industrial-grade arm and an integrated vision-and-conveyor station for more advanced, production-realistic projects. RobotLAB can help you choose at 1-87-RobotLAB.
