Peel 3D Scanner

Accessories

Peel 3D is an affordable professional-grade handheld 3D scanner with great accuracy. It lets you make high-quality 3D scans of small or large objects while keeping your project on a budget.



        • 1 Peel 1 3D Scanner

        • 1 Power Supply
        • 1 USB Cable
        • Positioning targets (regular and adhesive)
        • 1 rugged transport case
        • 1 year-warranty and RobotLAB Support




Price: $5,990


In Stock

I NEED A PRICE QUOTE

OR CLICK HERE TO SUBMIT YOUR PURCHASE ORDER

Watch the video about Peel 1 3D Scanner

  • Main Features

    Create your own maker-space with the state-of-the-art product and teach your students how to solve open-ended problems by creating their own models and prototypes.

  • Educational value

    Engineering, Technology.

  • What’s in the box?

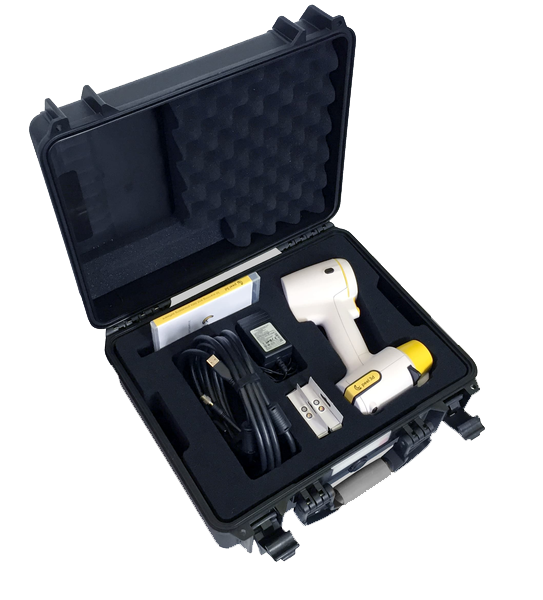

    The Peel 3D 1 Scanner includes 1 Peel 3D Scanner, 1 USB Cable, 1 Power Supply, Positioning targets (Regular and Adhesive), 1 Rugged Transport Case and a 1-year warranty.

  • Mobile / stationary

    Stationary

  • Best for

    Colleges, Universities

  • Grade Level

    Grades 12+

  • Curriculum

    Not required

  • Professional Development / Training

    No training required – available as an option

  • Warranty

    1-year warranty

peel-3d-TRAN

Peel 3d is professional-grade handheld 3D scanning in its purest form. It has no useless gadgets to make it seem more interesting or appealing. It simply lets you make high-quality 3D scans of small or large objects while keeping your project on a budget. It can scan most items directly without any preparation as it recognizes the shape of objects automatically. Trying to scan something very smooth? No problem! This 3D scanner can also use stick-on markers to let you scan the flattest surfaces.



How it works?

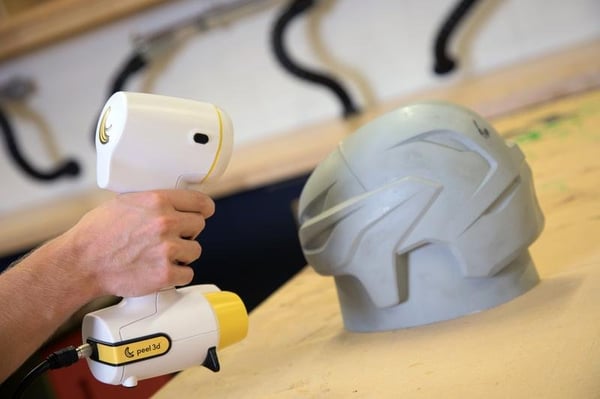

1. Scan the object

Both the object and scanner can move freely: you see what you've scanned and what you've missed in real time.

Peel-3D-Scanner-1
Peel-3D-Scanner-2

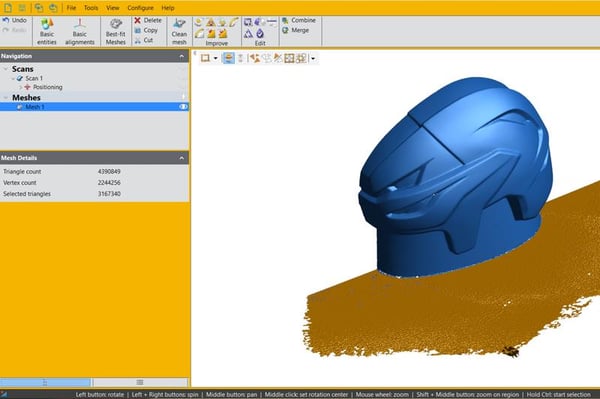

2. Finalize mesh

Cleanup, improve, align and export like a pro with tools you simply will not find in any other affordable solutions.

3. Export File

Plenty of export formats are available to let you work with the industry’s best reverse engineering or 3D modeling software.

Peel-3D-Scanner-3-1



It can tackle a lot!

✓ Metal Castings ✓ Clay Models ✓ Ceramic and Porcelain ✓ Plastics ✓ Painted Parts
✓ Stone and Masonry ✓ Sculptures ✓ Fabric and Leather ✓ Human Form ✓ Organic Shapes



Specifications


Part size range (recommended) 0.3 - 3.0 m (1 - 10 fr)
Accuracy Up to 0.250 mm (0.01 in)
Mesh Resolution 0.500 mm (0.020 in)
Measurement resolution 0.500 mm (0.020 in)
Volumetric accuracy 0.500 mm/m (0.006 in/ft)
Scanning Area 380 x 380 mm (15.0 x 15.0 in)
Stand-off distance 400 mm (15.75 in)
Depth of field 250 mm (10.0 in)
Light Source White light (LED)
Colors N/A
Texture Resolution  N/A
Positioning Methods  Geometry and/or targets
Weight  850 g (1.9 lb)
Dimensions  96 x 140 x 258 mm
Connection Standard  1 x USB 2.0
Output Formats  .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr
Operating Temperature Range  5–40°C (41–104°F)
Operating Humidity Range  10–90%
Certifications  EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), IP50, WEEE
