Main Features
It features powerful integrated direct-drive motors that enable high-velocity maneuvers along with four steering modes: differential, tracked, omni-directional, and Ackermann. This versatility supports researching many applications.
Mobile / stationary
Mobile
Best for
Industrial, Research.
Professional Development / Training
No training required –available as an option
Warranty
1-year warranty

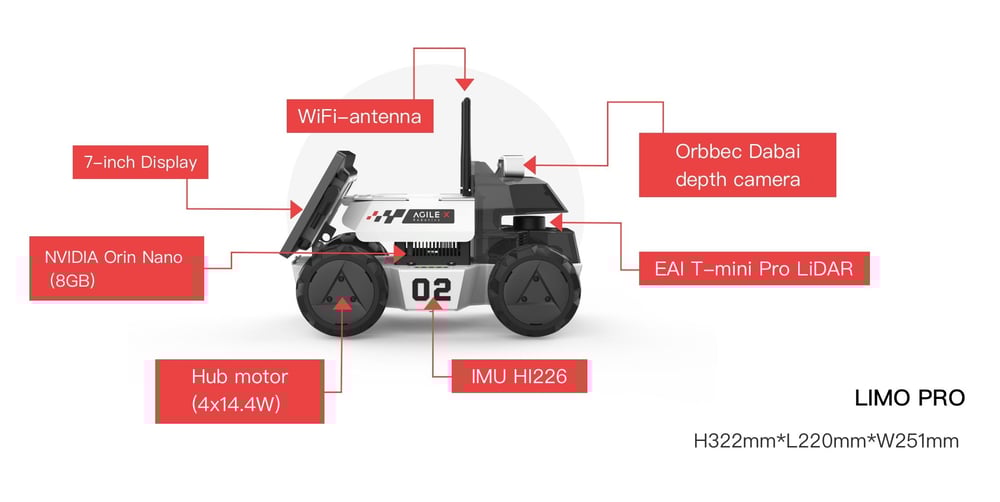

LIMO PRO integrates the NVIDIA Orin Nano alongside the EAI T-mini Pro LiDAR and Orbbec Dabai depth camera. This enables robust environmental perception and intelligence for autonomous navigation, obstacle avoidance, and visual recognition applications.
Compatibility with both ROS 1 Noetic and ROS 2 Foxy provides flexible software integration. An extended 2.5 hour battery life ensures continuous research and experimentation.
As an ideal platform for students, researchers, and enthusiasts, LIMO PRO facilitates immersive learning with cutting-edge sensors and software.
Highlight
- Orin Nano Power: Built on NVIDIA's advanced Orin Nano, a high-performance embedded AI computing platform.
- Advanced Sensors: Equipped with the EAI T-mini Pro LiDAR and Orbbec Dabai depth camera, enhancing its environment perception capabilities.
- Versatile Applications: Ideal for developing autonomous navigation, obstacle avoidance, and visual recognition applications.
- ROS Compatibility: Supports ROS1 Noetic and aligns with ROS 2 FOXY, making it compatible with popular robotic software frameworks.
- Extended Battery Life: Features a significantly improved battery life, allowing up to 2.5 hours of continuous operation.
Tech specifications
|
Items |
Parameters |
Values |
|
Mechanical |
Overall dimension |
322*220*251mm |
|
Wheel base |
200mm |
|
|
Tread |
175mm |
|
|
Dead load |
4.8kg |
|
|
Load |
1kg（Four-wheel differential） |
|
|
4kg（Ackermann mode） |
||
|
4kg（Wheat wheel） |
||
|
Minimum ground clearance |
24mm |
|
|
Drive type |
Hub motor (4x14.4W) |
|
|
Performance |
No-load max. speed |
1m/s |
|
Ackermann minimum turning radius |
0.4m |
|
|
Work environment |
-10~+40℃ |
|
|
Max. climbing capacity |
40°（under track mode） |
|
|
System |
Power interface |
DC（5.5x2.1mm) |
|
OS |
Ubuntu 20.04 |
|
|
IMU |
HI226 |
|
|
CPU |
6 Core Arm@ Cortex@-A78AE |
|
|
GPU |
1024-core CUDA |
|
|
Battery |
10Ah 12V |
|
|
Working time |
2.5H |
|
|
Stand-by time |
4H |
|
|
Communication interface |
WIFI,Bluetooth |
|
|
Sensor |
LIDAR |
EAI T-mini Pro |
|
Depth camera |
DaBai |
|
|
IPC |
NVIDIA Orin Nano（8G） |
|
|
USB-HUB |
TYPE-C x1，USB2.0 x2 |
|
|
Front display |
1.54 inch 128x64 white OLED display screen |
|
|
Rear display |
7 inch touch screen |
|
|
Control |
Control mode |
Mobile APP，command control |
|
Mobile APP |
Bluetooth，maximum distance 10m |
