Manipulator H

Robotics & Coding

Multi-Purpose Affordable Manipulator for Research and Automation


  • 1 x Manipulator-H (fully assembled)
  • 1 x Storage Case
  • 1 x USB2Dynamixel (PC interface)
  • 1 x Extra cable set (4P,2P)
  • 1 x Screw set (WB M2.5 and others)
  • 1 x USB Drive with SDK and manuals
  • 1 x Quickstart book




Price: $18,900


In Stock

I NEED A PRICE QUOTE

OR CLICK HERE TO SUBMIT YOUR PURCHASE ORDER
  • Main Features

    Mobile and a programmable robot for students ages 7 and up

  • Educational value

    Engineering, Robotics, Computer Science, Technology. Programming, Coding

  • What’s in the box?

     1 Manipulator - H (Fully assembled), 1 storage case, 1USB2Dynamixel (PC interface), 1X Extra cable set (4P,2P), 1 Screw Set (WB M2.5 and others), 1 USB Drive with SDK and manuals, 1 Quickstart Book

  • Mobile / stationary

    Mobile

  • Student to robot ratio

    3 students per robot
  • Best for

    Middle School, High School, College, Museum, Library, Summer Camp

  • Grade Level



  • Curriculum

    Covering Robotics, Technology, Coding, programming

  • Professional Development / Training

    No training required – available as an option

  • Warranty

    1-year warranty

All-in-one module
DC Motor + Controller + Driver + Sensor + Cycloid Reduction Gear

Small, Lightweight
  • Minimized module size with the self-developed small, lightweight, cycloid reduction gear
  • High weight to output rate (0.05Nm/g)
  • High shock resistance
Precise control and low backlash
  • The incremental encoder and contactless magnetic encoder for absolute positioning
  • The low backlash of 3~4arcmin
  • Performance data provided, tested by KOLAS (Korea Laboratory Accreditation Scheme)
Torque control using a current sensor
  • High current sensing algorithm and current feedback control
  • Position, speed, and current control using an algorithm
Easy development environment
  • Provides C-based library
  • Provides various solution examples (C++, LabVIEW, C#, eclipse, JAVA, etc.)
 Key Purpose
Research and Education
  • Experiment with kinematics and dynamics
  • Design and research two-armed robot system
  • Mobile robot system

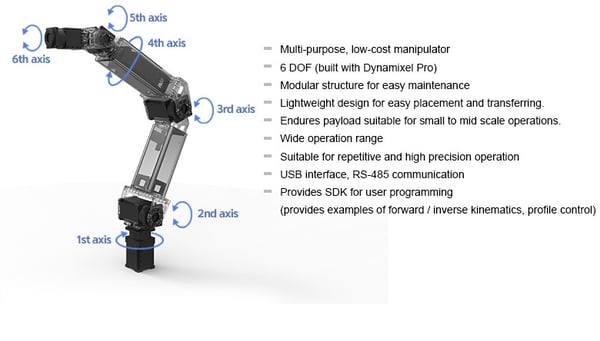

222

Actuator Configuration

Motor configuration

Actuator (DYNAMIXEL PRO) Description

Dynamixel Pro Detail


Available Documents
